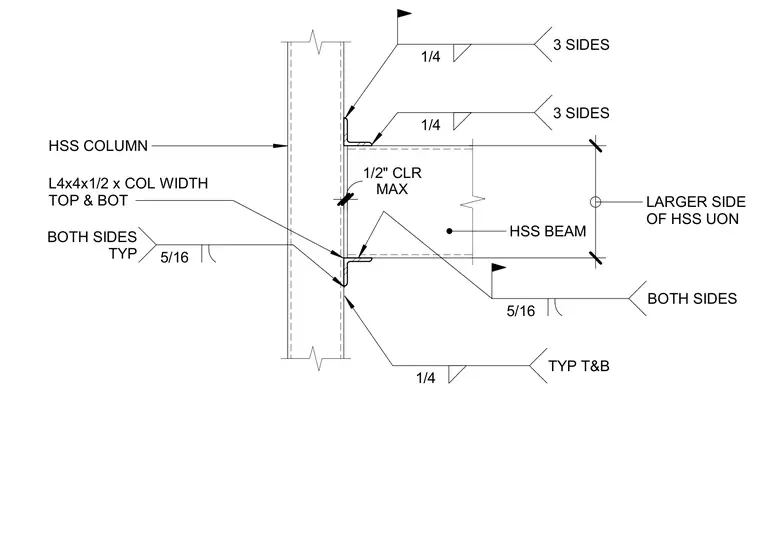

An HSS beam frames into the face of an HSS column utilizing L4x4x1/2 structural angles spanning the full column width at the top and bottom flanges. A maximum one-half-inch clearance is maintained between the beam end and the column face. The angles are welded to the column with quarter-inch fillet welds on three sides typical top and bottom. The beam webs and flanges are secured to the angles using five-sixteenth-inch fillet welds on both sides typical, with larger side of HSS used unless otherwise noted.
L4x4x1/2 x COL WIDTH TOP & BOT HSS COLUMN HSS BEAM 5/16 BOTH SIDES TYP 1/4 3 SIDES 5/16 BOTH SIDES 1/4 3 SIDES 1/4 TYP T&B MAX 1/2" CLR LARGER SIDE OF HSS UON
