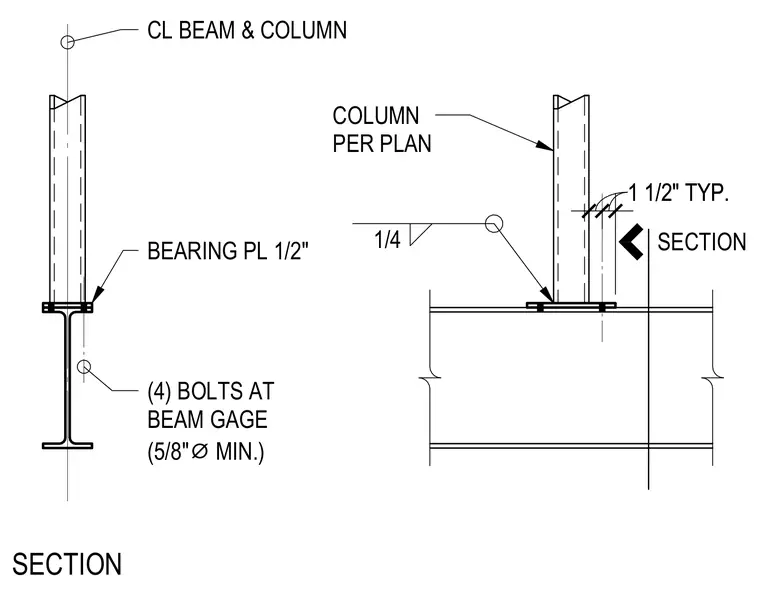

A hollow structural section column bears directly onto a wide flange steel beam via a one-half-inch thick bearing plate welded at the base. The connection is secured with four minimum five-eighth-inch diameter bolts spaced at the beam gauge. A one-quarter-inch fillet weld joins the bearing plate to the assembly, with centerlines aligned between the beam and the column.
SECTION 1/4 COLUMN PER PLAN (4) BOLTS AT BEAM GAGE (5/8" ⌀ MIN.) BEARING PL 1/2" SECTION CL BEAM & COLUMN 1 1/2" TYP. 1 1/2" TYP.
