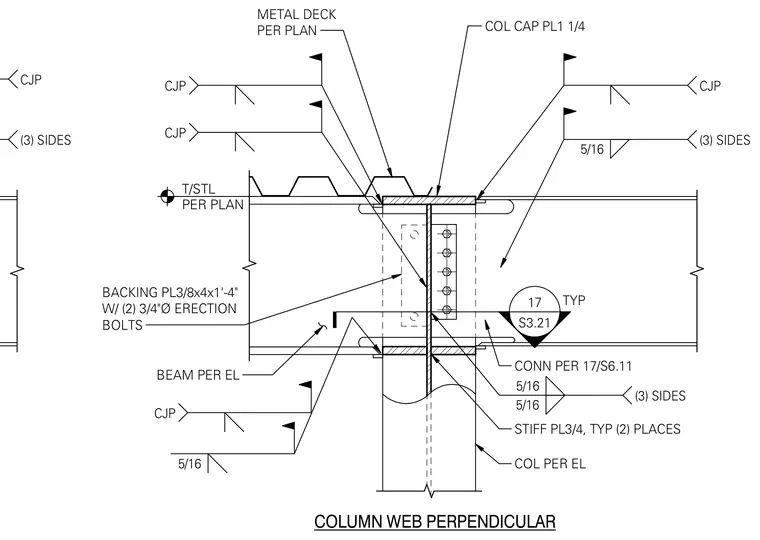

A steel beam frames perpendicular to a column web, utilizing a column cap plate and a backing plate secured with two three-quarter-inch-diameter erection bolts. Three-quarter-inch-thick stiffener plates are welded to the column web on both sides with five-sixteenth-inch fillet welds. The beam flanges and web connections are detailed with complete joint penetration welds and five-sixteenth-inch fillet welds on three sides as specified. Metal deck and top of steel elevations are positioned per plan.
S3.21 17 CJP (3) SIDES CJP 5/16 (3) SIDES CJP CJP CJP 5/16 STIFF PL3/4, TYP (2) PLACES COL PER EL CONN PER 17/S6.11 COLUMN WEB PERPENDICULAR BACKING PL3/8x4x1'-4" W/ (2) 3/4"Ø ERECTION BOLTS BEAM PER EL T/STL PER PLAN 5/16 5/16 (3) SIDES TYP METAL DECK PER PLAN COL CAP PL1 1/4
