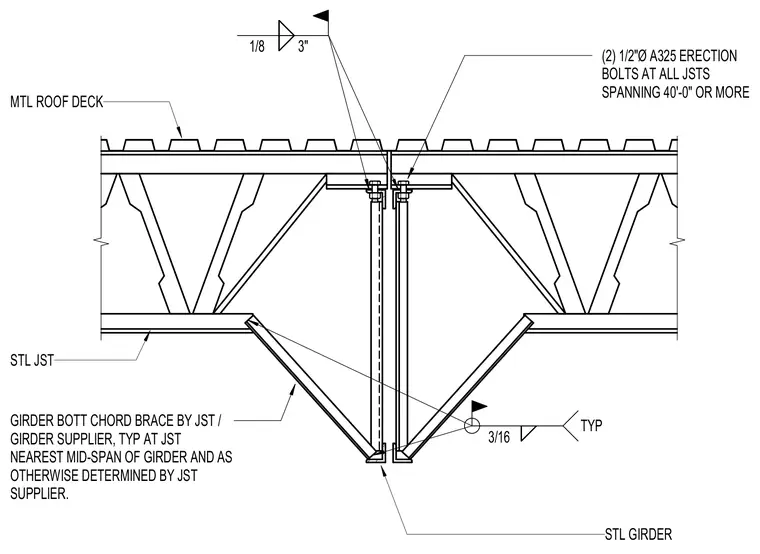

Open-web steel joists bear on a structural steel girder beneath a metal roof deck. Two half-inch-diameter ASTM A325 erection bolts secure the joist top chords at all joists spanning forty feet or more. A girder bottom chord brace is provided by the joist or girder supplier, positioned typically at the joist nearest the mid-span of the girder and as otherwise determined by the supplier. Fillet welds of three-sixteenths inch typical connect the framing members.
GIRDER BOTT CHORD BRACE BY JST / GIRDER SUPPLIER, TYP AT JST NEAREST MID-SPAN OF GIRDER AND AS OTHERWISE DETERMINED BY JST SUPPLIER. STL GIRDER MTL ROOF DECK STL JST (2) 1/2"Ø A325 ERECTION BOLTS AT ALL JSTS SPANNING 40'-0" OR MORE 3/16 TYP 1/8 3"
