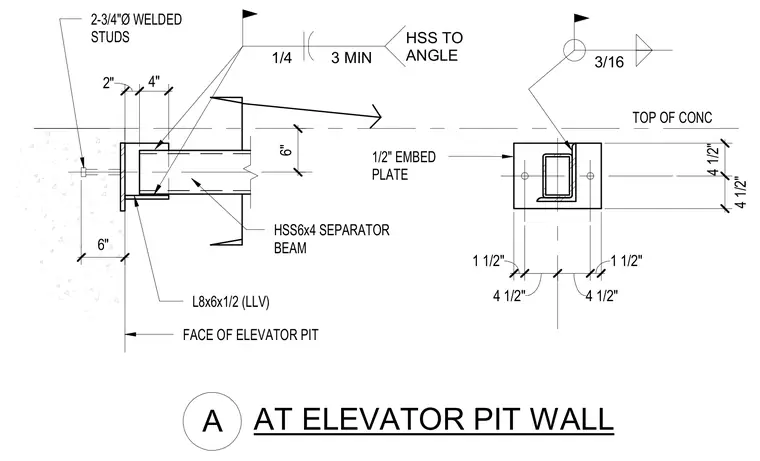

An HSS6x4 separator beam connects to a concrete elevator pit wall via an L8x6x1/2 angle and a one-half-inch embed plate equipped with two three-quarter-inch diameter welded studs. The hollow structural section welds to the angle with a three-sixteenths-inch fillet weld, and the angle secures to the embed plate with a one-quarter-inch fillet weld. The embed plate is anchored directly into the concrete face of the elevator pit.
TOP OF CONC FACE OF ELEVATOR PIT HSS6x4 SEPARATOR BEAM L8x6x1/2 (LLV) 1/2" EMBED PLATE 2-3/4"Ø WELDED STUDS AT ELEVATOR PIT WALL A 2" 4" 6" 6" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 4 1/2" 4 1/2" 3/16 1/4 3 MIN HSS TO ANGLE
