Structural · S-H38MM

Steel Beam to Column Shear Tab and Stiffener Plate Connection

Materials

Concrete Steel Metal (misc.)

Elements

Beams Roofs Decks

Connections

Welded Connection Bolted Connection

About this detail

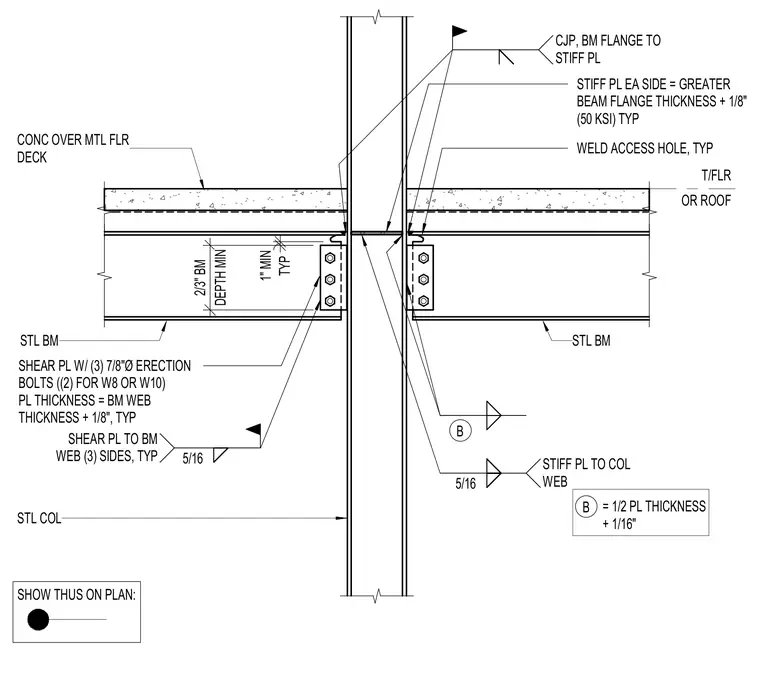

Steel beams frame into opposite sides of a steel column using a welded shear plate and continuity stiffener plates. The shear plate connects to the beam web with three 7/8-inch diameter erection bolts, or two bolts for W8 and W10 profiles, with a plate thickness equal to the beam web thickness plus one-eighth inch. Stiffener plates on each side of the column web match the greater beam flange thickness plus one-eighth inch using 50 KSI steel, welded to the column web with a five-sixteenth-inch fillet weld and connected to the beam flange with a complete joint penetration weld. A weld access hole is provided at the beam web and flange intersection. Concrete over metal floor deck bears at the top of floor or roof level.
