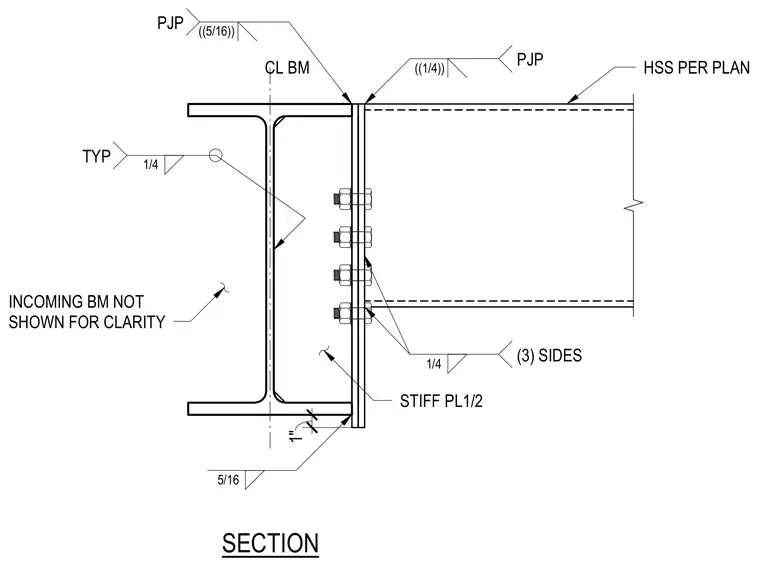

An incoming hollow structural section is connected to the center line of a wide flange beam using an end plate welded with partial joint penetration welds and a one-quarter inch fillet weld on three sides. A one-half inch stiffener plate is welded to the web of the wide flange beam with a one-quarter inch typical fillet weld. Four bolts secure the connection between the members.
5/16 SECTION CL BM PJP ((5/16)) PJP ((1/4)) (3) SIDES 1/4 STIFF PL1/2 INCOMING BM NOT SHOWN FOR CLARITY TYP 1/4 HSS PER PLAN 1"
