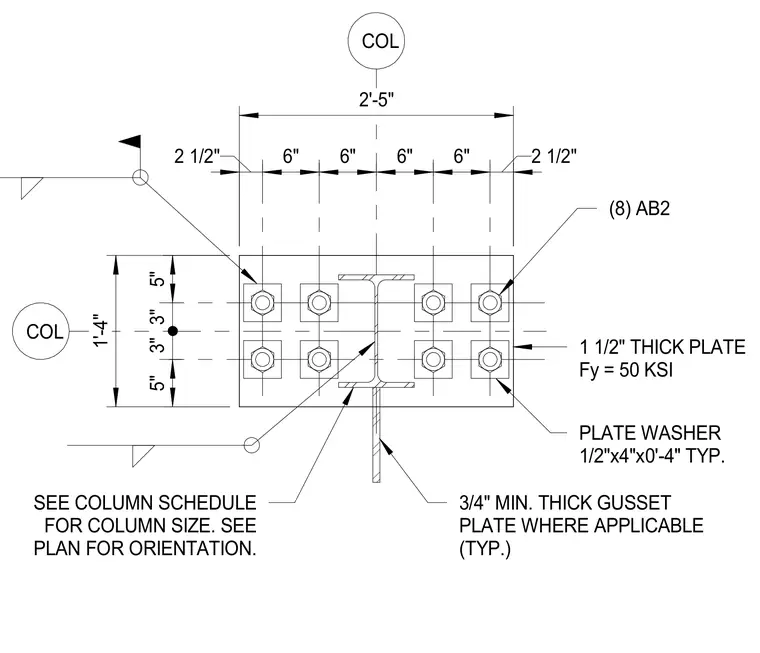

A steel column connects to a one-and-a-half-inch thick base plate with a yield strength of fifty ksi. The base plate is secured with eight AB2 anchor bolts arranged in a symmetrical pattern, each paired with a half-inch by four-inch by four-inch plate washer. A three-quarter-inch minimum thick gusset plate connects where applicable. Column size is determined per the column schedule, and orientation is sized per plan.
SEE COLUMN SCHEDULE FOR COLUMN SIZE. SEE PLAN FOR ORIENTATION. 1 1/2" THICK PLATE Fy = 50 KSI (8) AB2 PLATE WASHER 1/2"x4"x0'-4" TYP. 3/4" MIN. THICK GUSSET PLATE WHERE APPLICABLE (TYP.) 1'-4" 5" 3" 3" 5" 2'-5" 2 1/2" 6" 6" 6" 6" 2 1/2" COL COL
