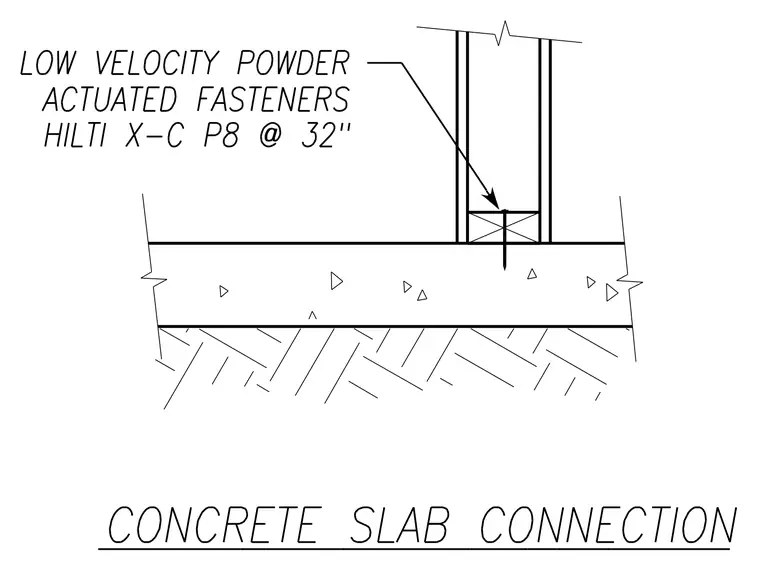

A metal stud track bears directly on a concrete slab and is anchored using Hilti X-C P8 low velocity powder actuated fasteners spaced at thirty-two inches on center. The concrete slab rests on prepared subgrade.
