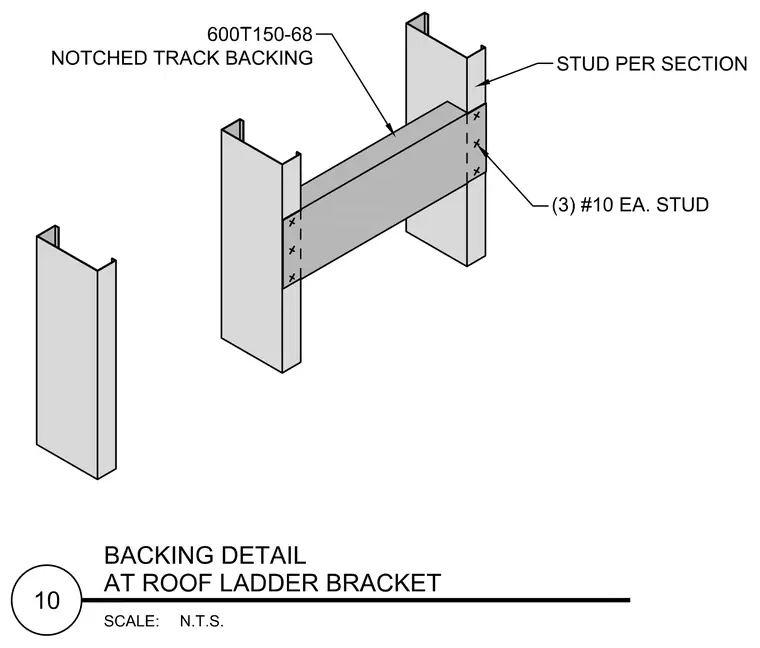

A 600T150-68 notched track backing member spans between studs per section, secured at each end with three number 10 screws per stud. The assembly provides structural backing for a roof ladder bracket. Stud size and gauge are determined per section requirements.
