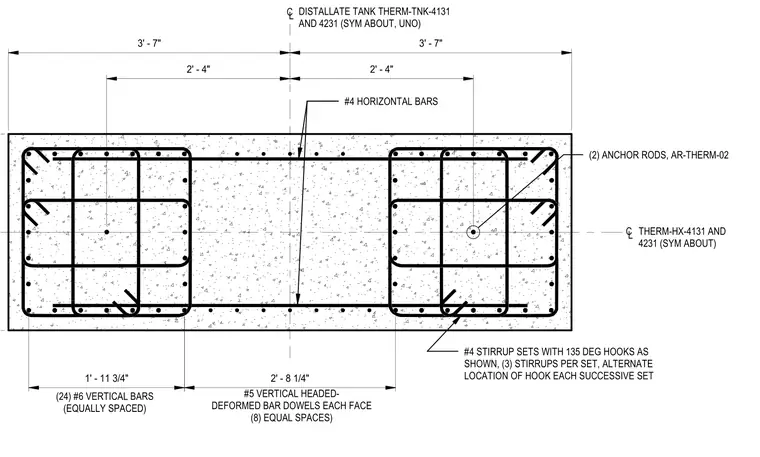

This concrete pedestal assembly features twenty-four number six vertical bars equally spaced around the perimeter, supplemented by eight number five vertical headed-deformed bar dowels at each face. Lateral reinforcement consists of number four stirrup sets with one hundred thirty-five degree hooks, arranged in groups of three per set with alternating hook locations for each successive set. Number four horizontal bars provide additional confinement. Two anchor rods, identified as AR-THERM-02, are positioned within the pedestal cross-section to secure the equipment.
