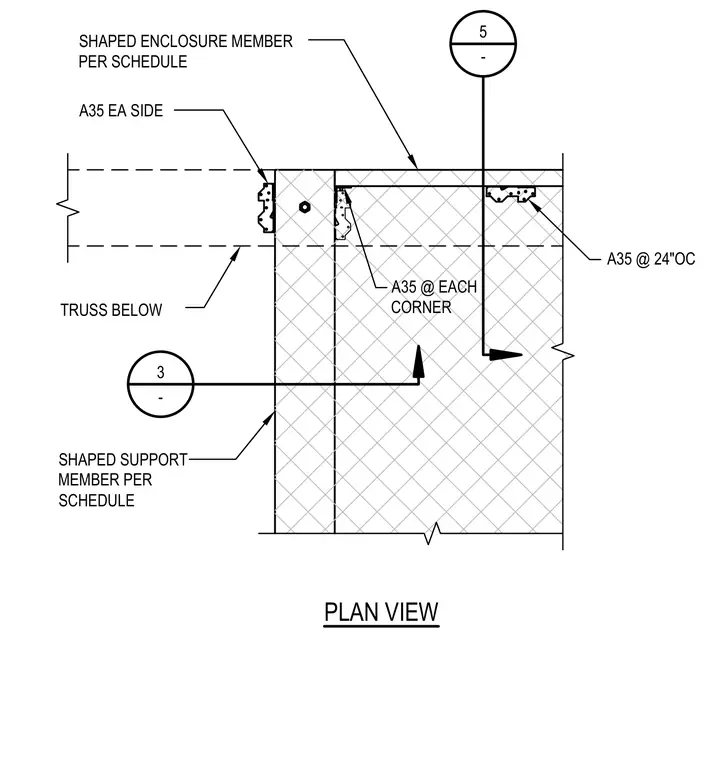

This plan detail shows the framing connection at a corner of a truss below an enclosure. Shaped support and enclosure members are installed per schedule. A35 framing clips are attached to each side and at each corner, with additional A35 clips spaced at twenty-four inches on center.
SHAPED ENCLOSURE MEMBER PER SCHEDULE SHAPED SUPPORT MEMBER PER SCHEDULE A35 EA SIDE A35 @ EACH CORNER TRUSS BELOW A35 @ 24"OC 5 - PLAN VIEW 3 -
