A metal deck bears on a structural steel edge beam sized per plan with a minimum 3-inch bearing width. A 12-gauge continuous metal edge form encloses the slab perimeter, reinforced with two continuous number 4 rebar and number 3 rebar spaced at 12 inches on center. Fourteen-gauge by 1-inch wide straps at a maximum 36-inch spacing anchor the assembly, secured with three-quarter-inch diameter field plug welds at 12 inches on center. A note requires the contractor to check the adequacy of the edge form.

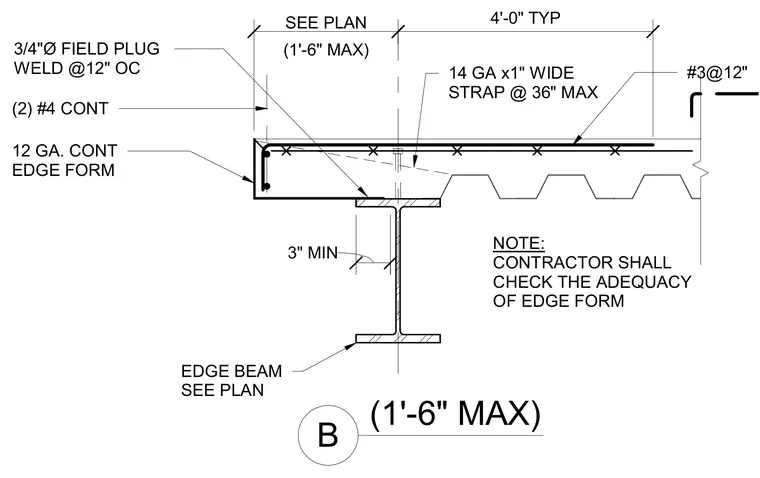

(1'-6" MAX) B #3@12" 12 GA. CONT EDGE FORM NOTE: CONTRACTOR SHALL CHECK THE ADEQUACY OF EDGE FORM 14 GA x1" WIDE STRAP @ 36" MAX (1'-6" MAX) SEE PLAN EDGE BEAM SEE PLAN 4'-0" TYP 3" MIN (2) #4 CONT 3/4"Ø FIELD PLUG WELD @12" OC
