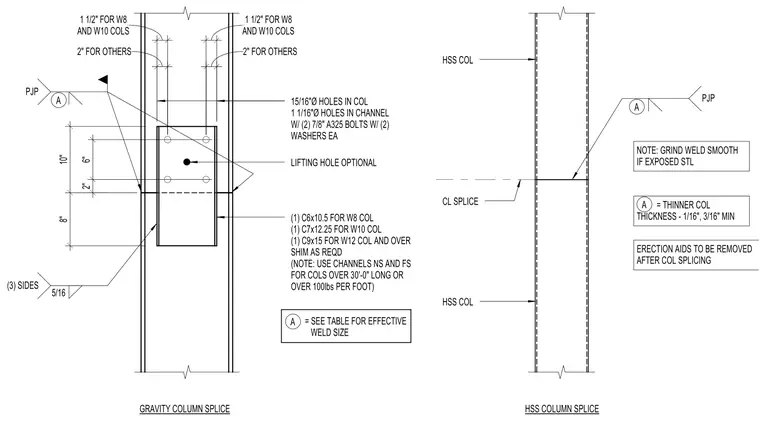

The gravity column splice connects vertical wide-flange column sections using bolted channel erection aids and partial-joint-penetration groove welds. The detail accommodates W8, W10, W12, and larger shapes with specified channel sizes ranging from C6x10.5 to C9x15 fastened with seven-eighths-inch A325 bolts and washers in matched holes. Shims are provided as required, and channels are specified on near side and far side for columns exceeding thirty feet in length or one hundred pounds per foot. The hollow structural section column splice utilizes a direct partial-joint-penetration groove weld governed by the thinner column thickness minus one-sixteenth inch with a three-sixteenth-inch minimum. Erection aids are removed after splicing, and welds exposed to view are ground smooth per project specifications.
8" 10" 2" 6" 2" FOR OTHERS AND W10 COLS 1 1/2" FOR W8 15/16"Ø HOLES IN COL 1 1/16"Ø HOLES IN CHANNEL W/ (2) 7/8" A325 BOLTS W/ (2) WASHERS EA LIFTING HOLE OPTIONAL (1) C6x10.5 FOR W8 COL (1) C7x12.25 FOR W10 COL (1) C9x15 FOR W12 COL AND OVER SHIM AS REQD (NOTE: USE CHANNELS NS AND FS FOR COLS OVER 30'-0" LONG OR OVER 100lbs PER FOOT) GRAVITY COLUMN SPLICE A = SEE TABLE FOR EFFECTIVE WELD SIZE A HSS COL HSS COLUMN SPLICE A HSS COL CL SPLICE NOTE: GRIND WELD SMOOTH IF EXPOSED STL = THINNER COL THICKNESS - 1/16", 3/16" MIN A ERECTION AIDS TO BE REMOVED AFTER COL SPLICING 2" FOR OTHERS AND W10 COLS 1 1/2" FOR W8 PJP (3) SIDES 5/16 PJP
