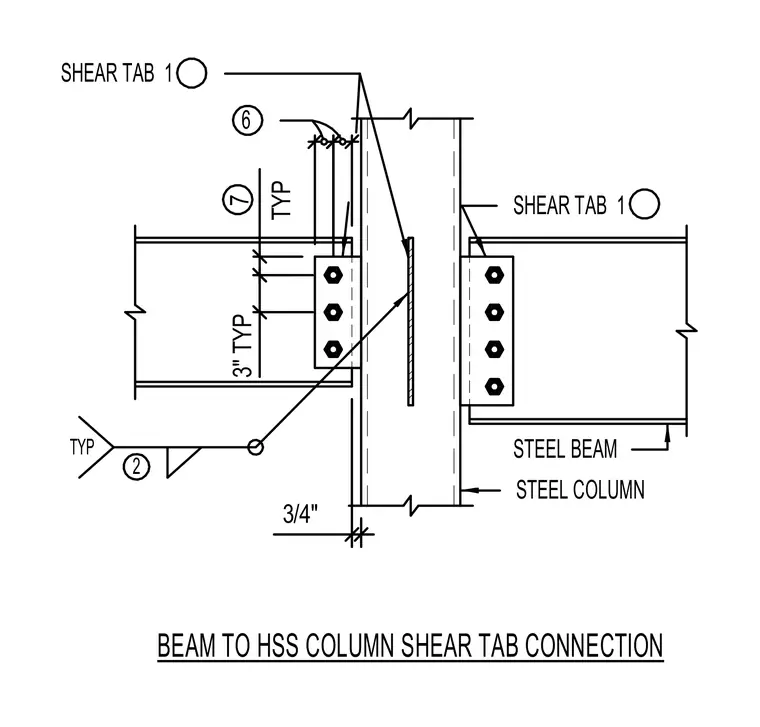

A steel beam connects to a hollow structural section steel column using a welded shear tab plate bolted to the beam web. The single plate shear tab is shop-welded to the face of the structural steel column and field-bolted through the beam web with three bolts. Typical bolt spacing and edge clearances are dimensioned across the connection. The detail includes structural steel framing members and welded plate connections.
TYP 3" TYP 7 6 3/4" SHEAR TAB 1 STEEL BEAM STEEL COLUMN 2 BEAM TO HSS COLUMN SHEAR TAB CONNECTION TYP SHEAR TAB 1
