Partial Height Partition HSS Support Detail

Materials

Steel Timber / Wood

Elements

Walls Partitions Floors / Slabs Arches Anchors / Embeds

Connections

Base Plate / Anchorage HSS Connection Embed Plate

About this detail

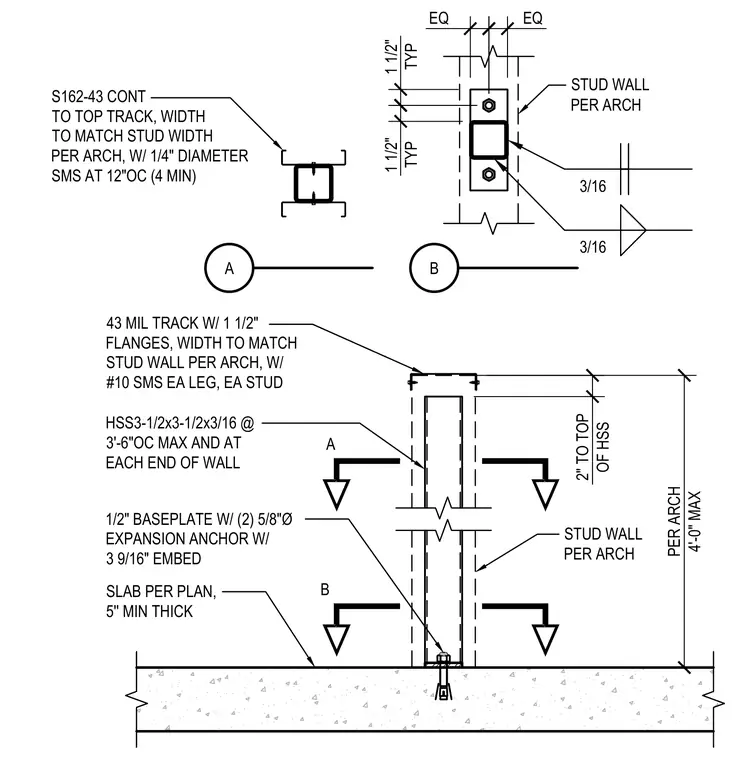

An HSS3-1/2x3-1/2x3/16 structural steel hollow structural section column anchors to a minimum five-inch thick concrete slab using a one-half-inch base plate secured with two five-eighth-inch diameter expansion anchors with a three-and-nine-sixteenth-inch embedment. The top of the steel post terminates two inches below the top of the architectural stud wall, supporting an S162-43 continuous top track fastened with one-quarter-inch diameter sheet metal screws spaced at twelve inches on center with a minimum of four. A forty-three mil track with one-and-one-half-inch flanges matches the architectural stud wall width and fastens with number ten sheet metal screws at each leg and each stud. The steel hollow structural section supports space at a maximum of three feet six inches on center and at each end of the partition wall.
