The hood top connection features a hanger rod with stiffener connected to top and bottom P1334 Unistrut connection plates using a three-eighths inch threaded rod with heavy duty lock nuts. The hood brace bottom connection utilizes a P1354A Unistrut connection clip fastened to the channel strut brace with two half-inch diameter A307 bolts and channel nuts. A P1012 channel nut attached to the Unistrut beam with a half-inch diameter bolt secures the assembly to the supporting member.

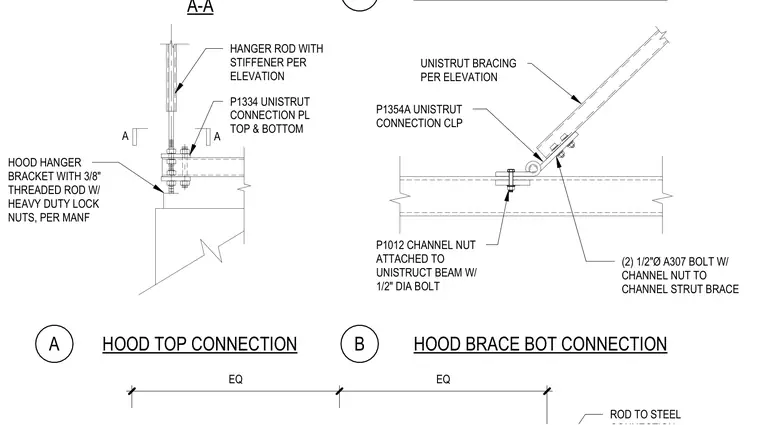

ROD TO STEEL HOOD TOP CONNECTION A P1334 UNISTRUT CONNECTION PL TOP & BOTTOM HOOD HANGER BRACKET WITH 3/8" THREADED ROD W/ HEAVY DUTY LOCK NUTS, PER MANF HANGER ROD WITH STIFFENER PER ELEVATION A A A-A EQ EQ HOOD BRACE BOT CONNECTION B UNISTRUT BRACING PER ELEVATION P1354A UNISTRUT CONNECTION CLP P1012 CHANNEL NUT ATTACHED TO UNISTRUCT BEAM W/ 1/2" DIA BOLT (2) 1/2"Ø A307 BOLT W/ CHANNEL NUT TO CHANNEL STRUT BRACE HOOD BRACE BOT CONNECTION C
