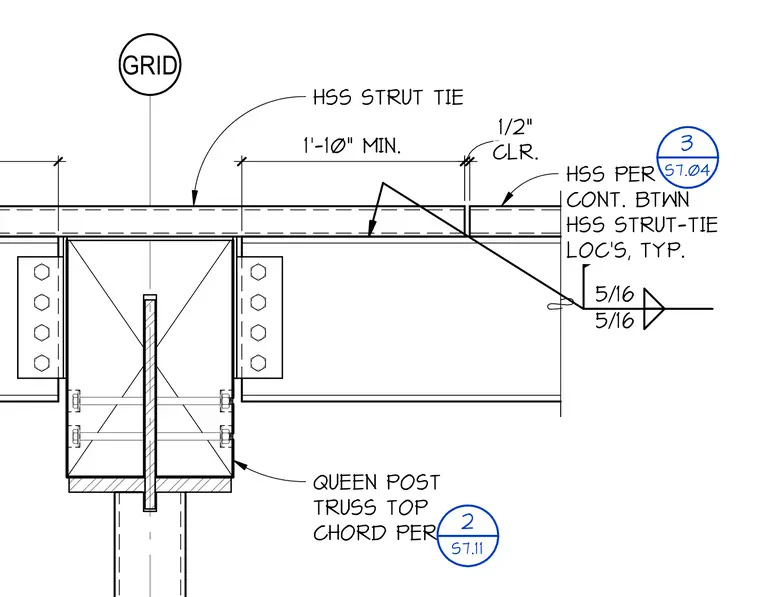

The hollow structural section strut tie is positioned relative to the grid with a minimum one foot ten inch clearance, maintaining a half inch clearance at continuous members between strut tie locations. Five-sixteenth inch fillet welds secure the structural steel components. The queen post truss top chord is detailed per sheet S7.11, while adjacent HSS members are installed per sheet S7.04.
GRID 1'-10" MIN. QUEEN POST TRUSS TOP CHORD PER HSS STRUT TIE 5/16 5/16 2 S7.11 CLR. 1/2" HSS PER CONT. BTWN HSS STRUT-TIE LOC'S, TYP. 3 S7.04
