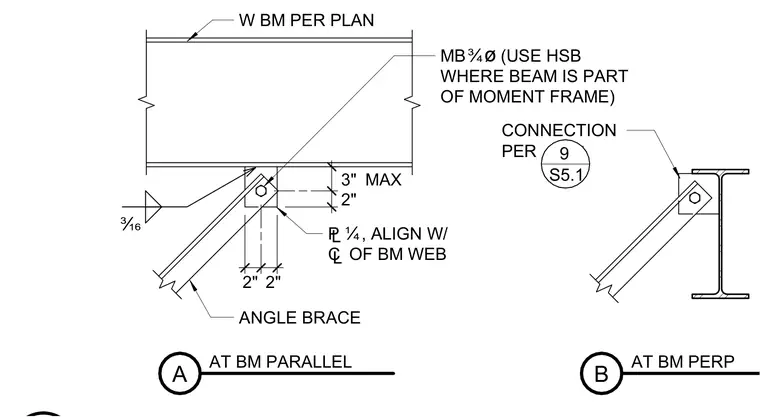

An angle brace connects to the underside of a wide-flange beam using a quarter-inch gusset plate aligned with the center of the beam web. The brace is secured with three-quarter-inch machine bolts, using high-strength bolts where the beam forms part of a moment frame. A three-sixteenths-inch fillet weld attaches the gusset plate to the beam flange. Detail options illustrate the brace oriented both parallel and perpendicular to the supporting beam.
AT BM PERP AT BM PARALLEL CONNECTION PER W BM PER PLAN ANGLE BRACE £Ë, ALIGN W/ ¢ OF BM WEB MAX 3" 2" 2" 2" Ê A B 9 S5.1 ___________ MBÓø (USE HSB WHERE BEAM IS PART OF MOMENT FRAME)
