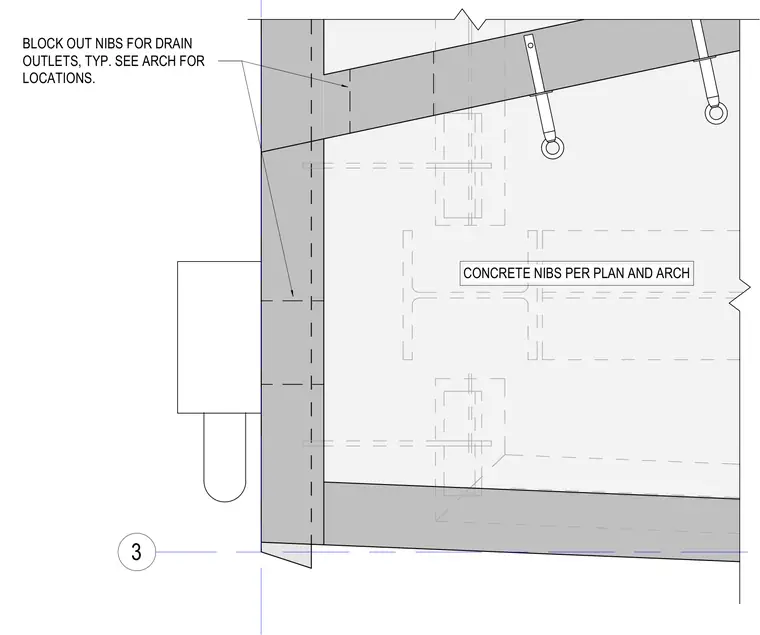

Concrete arch segments feature formed blockout nibs for drain outlets sized per architectural plans. Lifting or hanging inserts are cast into the concrete structural members. Locations of drain blockouts are coordinated with architectural requirements.
3 BLOCK OUT NIBS FOR DRAIN OUTLETS, TYP. SEE ARCH FOR LOCATIONS. CONCRETE NIBS PER PLAN AND ARCH
