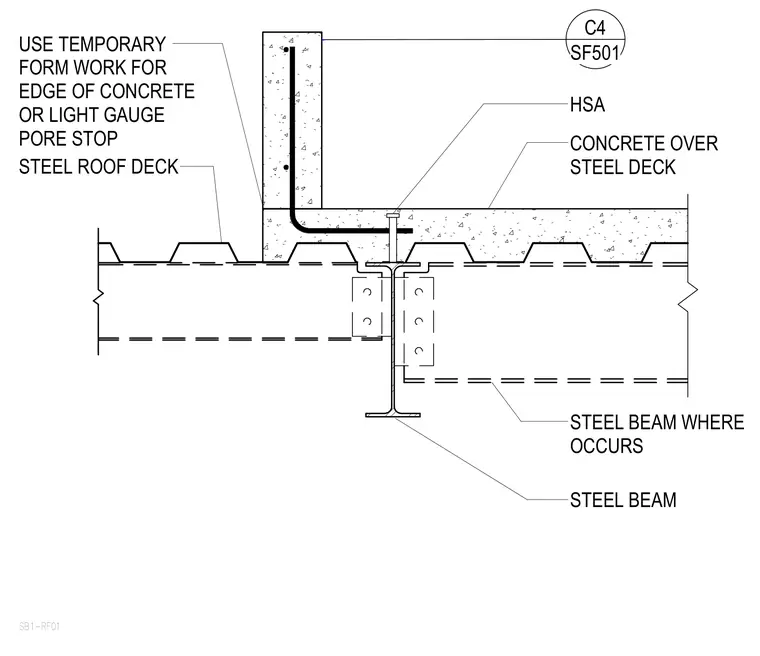

A concrete slab is cast over a steel roof deck and supported by a steel beam below. Shear stud anchors, abbreviated as HSA, tie the concrete slab to the steel beam flange. Temporary formwork or a light gauge pour stop is specified at the edge of the concrete. A secondary steel beam is positioned adjacent where required.
SB1-RF01 STEEL BEAM CONCRETE OVER STEEL DECK USE TEMPORARY FORM WORK FOR EDGE OF CONCRETE OR LIGHT GAUGE PORE STOP STEEL ROOF DECK STEEL BEAM WHERE OCCURS SF501 C4 HSA
