A steel column base connection ties into a reinforced concrete footing with a buckling-restrained brace. The steel column sits on a base plate bedded on non-shrink grout over a steel embed plate and concrete footing, with stiffener plates provided as required by the manufacturer. A steel gusset plate connects the steel buckling-restrained brace to the assembly using bolted connections. Anchor rods extend downward through the footing to a lower steel anchor plate assembly with side plates, set within a thickened footing zone to achieve the required embedment depth. A blockout in the concrete slab on grade is detailed to be poured solid after the braces are installed.

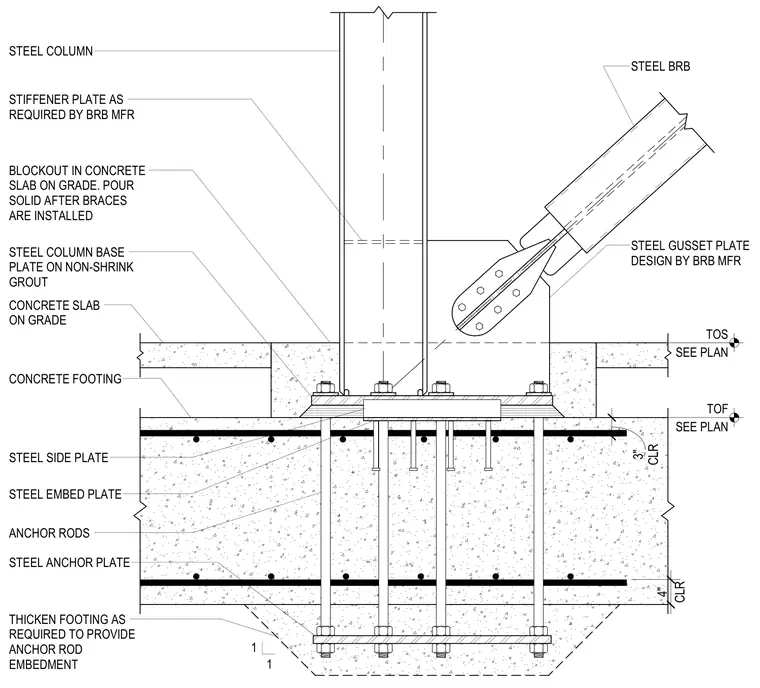

STEEL COLUMN CONCRETE SLAB ON GRADE BLOCKOUT IN CONCRETE SLAB ON GRADE. POUR SOLID AFTER BRACES ARE INSTALLED CONCRETE FOOTING STEEL GUSSET PLATE DESIGN BY BRB MFR STEEL BRB STEEL COLUMN BASE PLATE ON NON-SHRINK GROUT STEEL EMBED PLATE ANCHOR RODS THICKEN FOOTING AS REQUIRED TO PROVIDE ANCHOR ROD EMBEDMENT CLR 4" CLR 3" STEEL SIDE PLATE STEEL ANCHOR PLATE 1 1 STIFFENER PLATE AS REQUIRED BY BRB MFR TOS SEE PLAN TOF SEE PLAN
