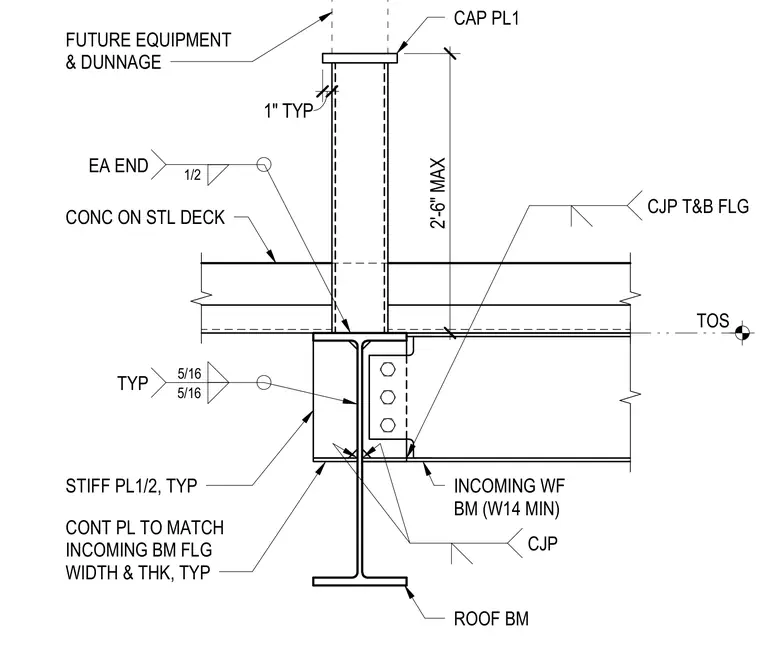

A future equipment stanchion stands above the roof level supported by an incoming wide-flange beam (W14 minimum) framing into a structural roof beam. The stanchion is capped with a one-inch-thick cap plate at each end and joined with complete-joint-penetration welds to the top and bottom flanges. One-half-inch stiffener plates are welded to the web with five-sixteenth-inch fillet welds. A continuous plate matching the incoming beam flange width and thickness is welded below. Concrete on steel deck surrounds the connection up to a maximum height of two feet six inches above the top of steel.
ROOF BM INCOMING WF BM (W14 MIN) STIFF PL1/2, TYP CONT PL TO MATCH INCOMING BM FLG WIDTH & THK, TYP CONC ON STL DECK 2'-6" MAX TOS 1" TYP FUTURE EQUIPMENT & DUNNAGE CAP PL1 EA END 1/2 TYP 5/16 5/16 CJP CJP T&B FLG
