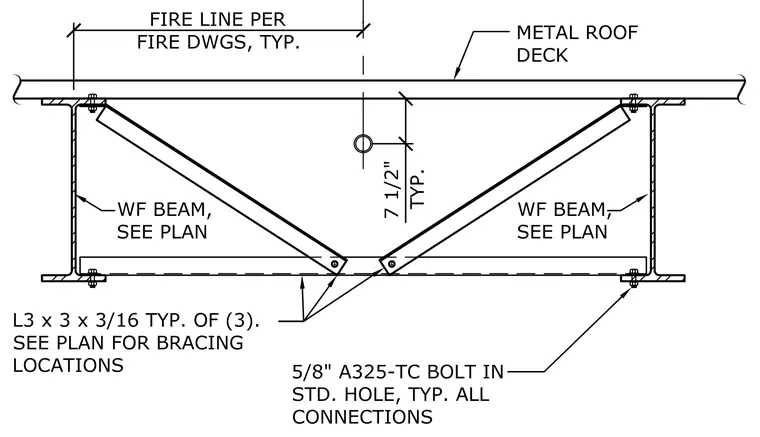

Alternate wide flange beam bracing is positioned beneath a metal roof deck. Wide flange beams sized per plan support the assembly, with a fire line routed according to fire drawings. Angle braces measuring 3x3x3/16 are provided, with three typical locations detailed. Connections are secured using 5/8-inch A325-TC bolts installed in standard holes across all connection points.
