CMU Wall Jamb, Corner, and Intersection Reinforcing

Materials

Concrete Masonry / CMU

Elements

Beams Walls Doors Floors / Slabs Expansion / Control Joints Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

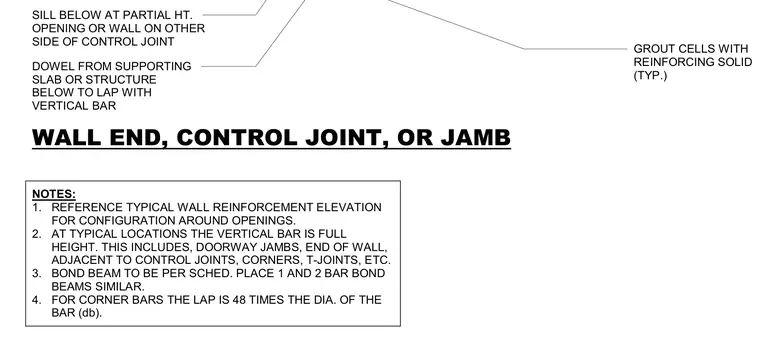

Reinforced concrete masonry unit wall details indicate standard vertical bar placement extending full height at typical locations including doorway jambs, wall ends, control joints, corners, and T-joints. Supporting structural slabs or foundations below receive dowels to lap with vertical reinforcing bars at wall ends, control joints, and partial height opening sills. All designated masonry cells are solidly grouted around the vertical reinforcing bars. Corner bar lap lengths are specified at forty-eight times the bar diameter. Bond beams are installed per structural schedule with one and two bar configurations placed similarly.
