Truss Chord Connection at Steel Column Web

Materials

Elements

About this detail

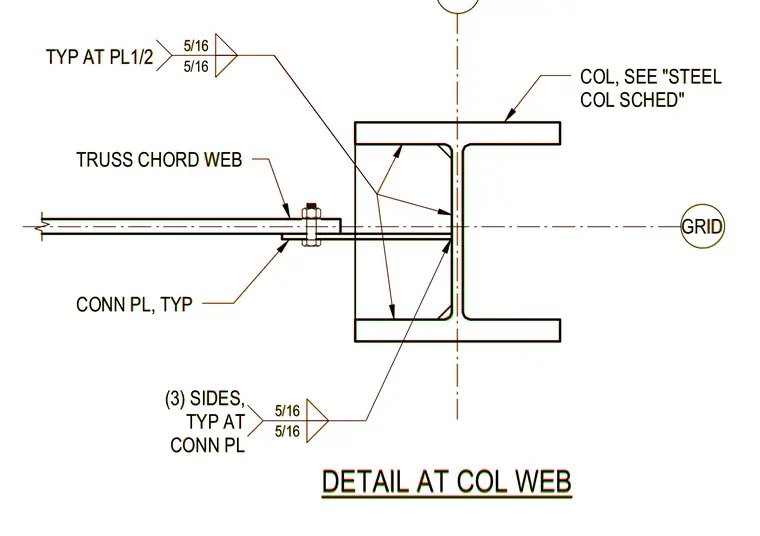

A truss chord web connects to the web of a structural steel column using a connection plate welded on three sides with five-sixteenth inch fillet welds. A bolt secures the truss chord to the connection plate. The column size is sized per the structural column schedule.
