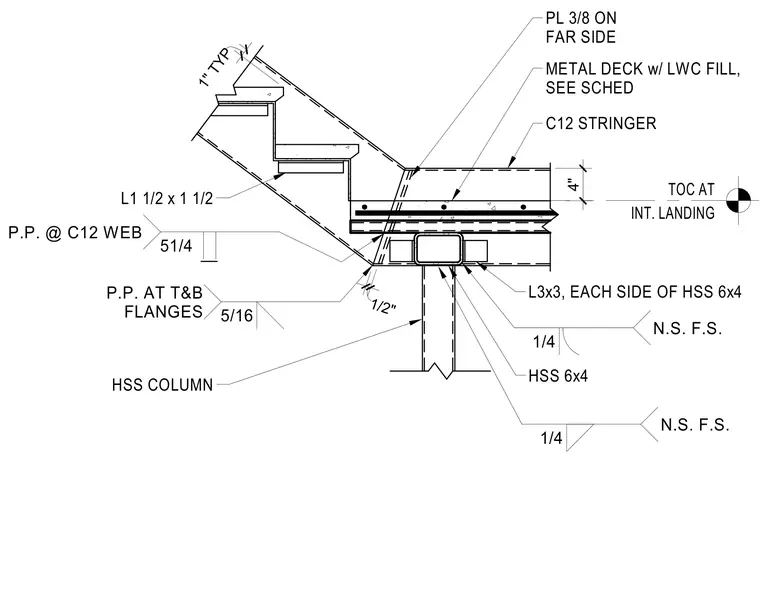

An HSS 6x4 column supports a stair landing formed by a C12 channel stringer and metal deck with lightweight concrete fill. Angles measuring L3x3 are placed on each side of the HSS 6x4 column and welded with 1/4-inch welds on the near side and far side. A 3/8-inch plate is welded on the far side, and a 1/2-inch plate is connected with 5/16-inch welds at the top and bottom flanges. Additional connections include a 1 1/2 by 1 1/2 angle and web plate connections to the C12 stringer.
INT. LANDING TOC AT L3x3, EACH SIDE OF HSS 6x4 HSS 6x4 1/2" PL 3/8 ON FAR SIDE 5/16 P.P. AT T&B FLANGES 1" TYP 4" C12 STRINGER METAL DECK w/ LWC FILL, SEE SCHED 51/4 P.P. @ C12 WEB L1 1/2 x 1 1/2 HSS COLUMN 1/4 N.S. F.S. 1/4 N.S. F.S.
