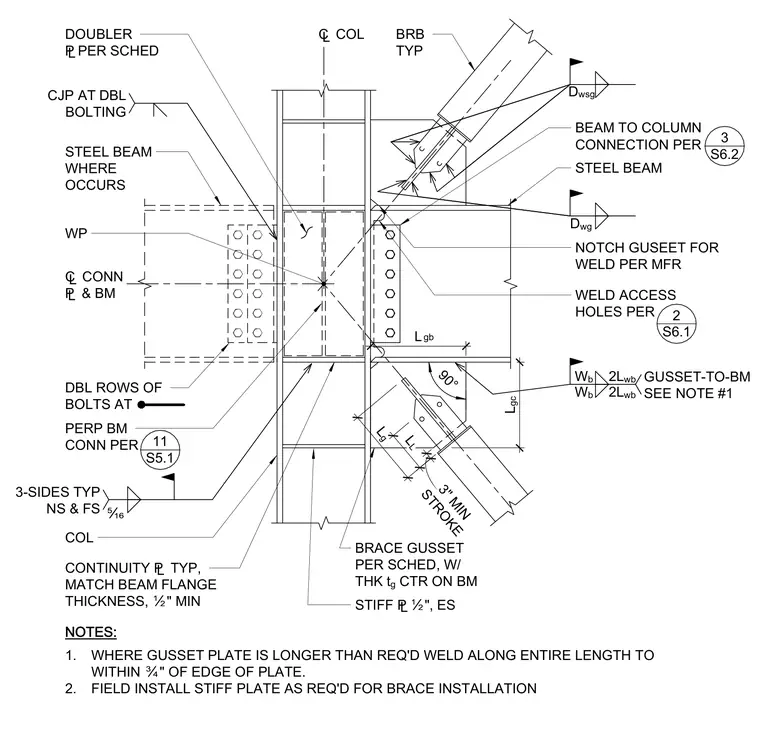

A buckling-restrained brace connects at a steel beam and column intersection. The assembly incorporates a brace gusset plate centered on the beam with a ninety-degree orientation, supported by a stiffener plate and continuity plates matching the beam flange thickness with a one-half inch minimum. Double rows of bolts connect the components, supplemented by complete joint penetration welds at double bolting and weld access holes per structural specifications. A doubler plate per schedule is provided at the column web, and the gusset plate is notched for welding per manufacturer requirements with continuous fillets on near and far sides.
¢ CONN £ & BM STEEL BEAM WHERE OCCURS STEEL BEAM COL BEAM TO COLUMN CONNECTION PER DBL ROWS OF BOLTS AT BRB TYP 3 S6.2 WP DOUBLER £PER SCHED PERP BM CONN PER BRACE GUSSET PER SCHED, W/ THK t g CTR ON BM STIFF £Ï", ES ¢ COL D wsg GUSSET-TO-BM SEE NOTE #1 90° D wg L 11 S5.1 CONTINUITY £ TYP, MATCH BEAM FLANGE THICKNESS, Ï" MIN Ì 3-SIDES TYP NS & FS STROKE 3" MIN gb NOTES: 1. WHERE GUSSET PLATE IS LONGER THAN REQ'D WELD ALONG ENTIRE LENGTH TO WITHIN Ó" OF EDGE OF PLATE. 2. FIELD INSTALL STIFF PLATE AS REQ'D FOR BRACE INSTALLATION 2L wb W b 2L wb W b L gc L g L L NOTCH GUSEET FOR WELD PER MFR CJP AT DBL BOLTING WELD ACCESS HOLES PER 2 S6.1
