Bottom Flange Brace Detail

Materials

Steel Glass / Glazing

Elements

Beams Bracing

Connections

Bracing Connection Bolted Connection

About this detail

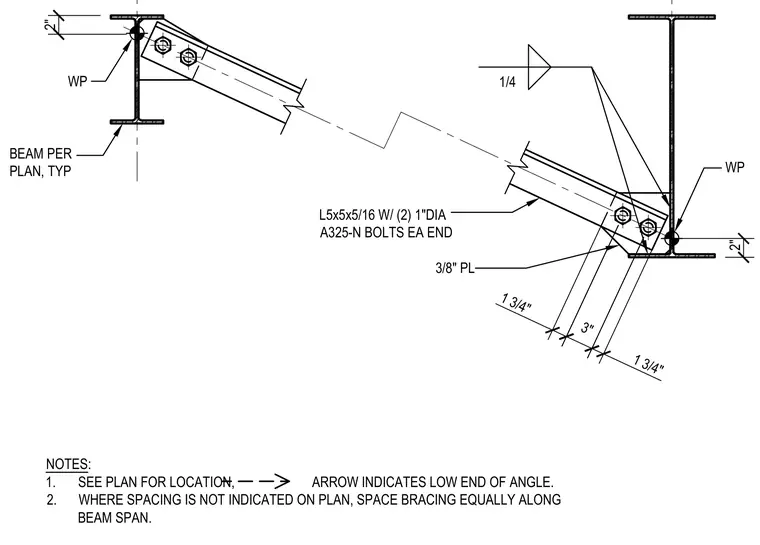

This structural steel connection uses an angle brace consisting of an L5x5x5/16 connected at each end with two 1-inch diameter A325-N bolts. The angle attaches to a three-eighths-inch gusset plate welded to the structural steel beam with a one-quarter-inch fillet weld. Working points are located two inches from the face of the beam flange, with bolt hole spacings detailed at one and three-quarter inches, three inches, and one and three-quarter inches. Bracing locations are verified per plan, with arrows indicating the low end of the angle, and intermediate bracing is spaced equally along the beam span when not explicitly dimensioned.
