Structural · S-GXRFG

Provide Pl 1/4"X5"Xcont

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Curtain Walls Decks Arches Bracing

Connections

Bracing Connection

About this detail

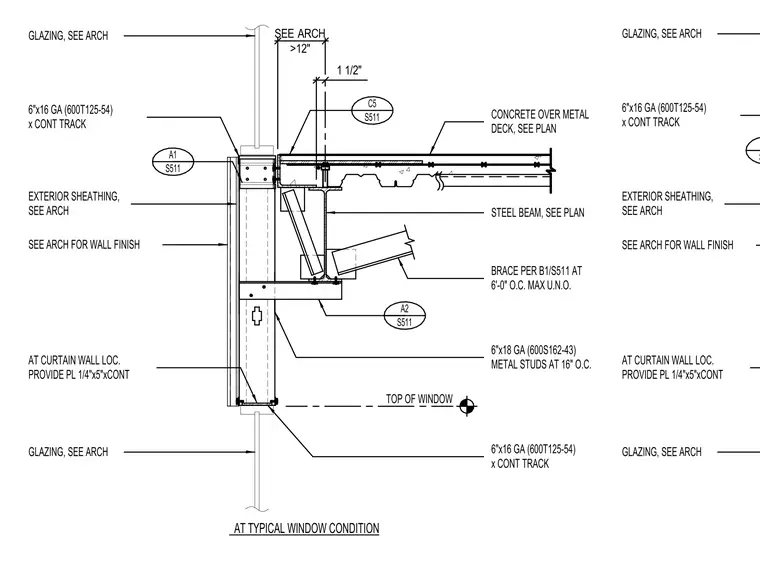

A continuous 6-inch 16-gauge track forms the head of the window below a steel floor beam and concrete over metal deck assembly. Exterior sheathing and wall finish are coordinated per architectural drawings. At curtain wall locations, a continuous 1/4-inch by 5-inch steel plate is provided. Cold-formed steel metal studs sized 6 inches by 18 gauge at 16 inches on center frame the wall opening, braced per drawing B1/S511 at 6'-0" maximum spacing unless noted otherwise.
