Structural · S-GXNRN

SFRS Collector Connection at Stepped Beams

Materials

Steel Glass / Glazing

Elements

Columns Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

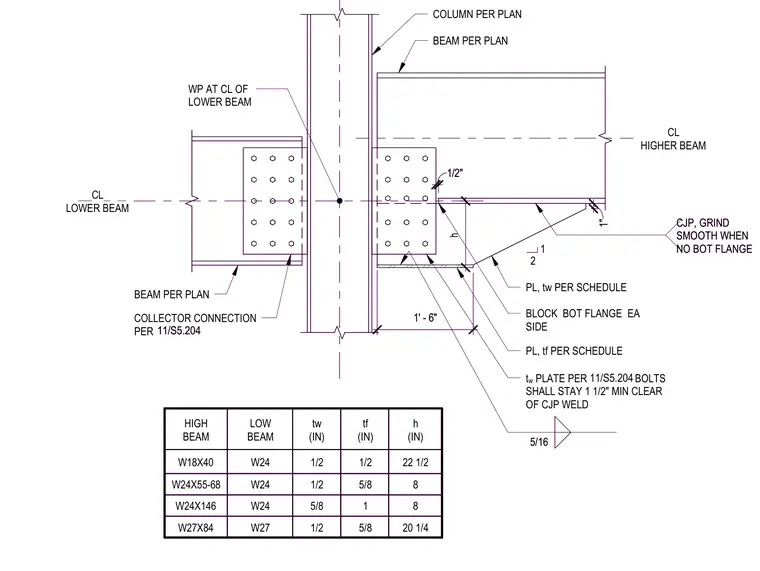

This structural steel connection details a collector beam framing into a column at a stepped elevation change. Higher and lower beams connect across the column using web plates sized per schedule with bolted configurations, alongside a bottom flange plate blocking each side. Bolts maintain a one-and-a-half-inch minimum clearance from the complete joint penetration weld. A complete joint penetration weld is ground smooth where no bottom flange beam exists per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
