Structural · S-GXFZK

Retaining Wall and Footing Section at Trash Enclosure

Elements

Walls Retaining Walls Floors / Slabs Foundations / Footings Arches Waterproofing / Flashing Drainage Site / Paving Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development Embed Plate

About this detail

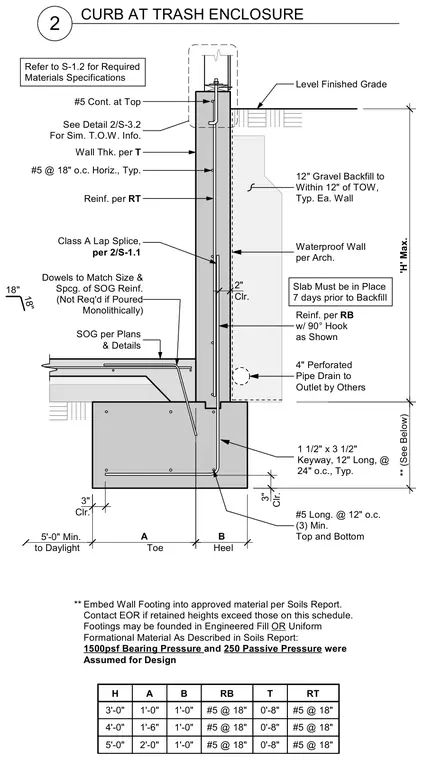

A concrete retaining wall with a continuous footing features a slab on grade connection and a trash enclosure curb at the top of the wall. The wall incorporates vertical and horizontal reinforcing steel scheduled by retained height, with a class A lap splice and #5 continuous bars at the top. The footing includes a keyway, longitudinal bottom reinforcing, and dowels matching the slab on grade reinforcement when not poured monolithically. Drainage is provided by a four-inch perforated pipe drain surrounded by twelve inches of gravel backfill, and the wall requires waterproofing per the architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
