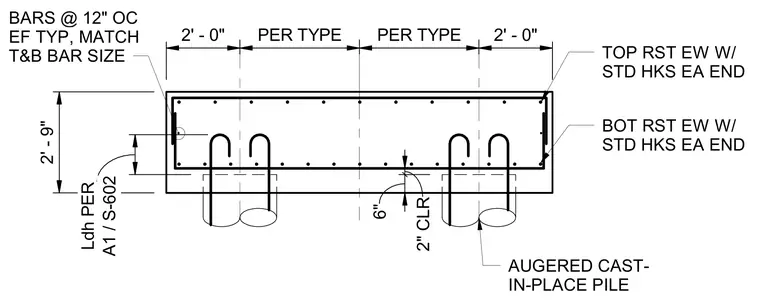

This concrete pile cap measures two feet nine inches in depth and is supported on augered cast-in-place piles. Top and bottom reinforcing steel extend each way with standard hooks at each end, maintaining a two-inch clear cover. Vertical bars spaced at twelve inches on center occur each face and match the top and bottom bar size. Pile dowels extend into the cap with development lengths per detail A1 on sheet S-602.
2' - 9" 2" CLR 6" 2' - 0" PER TYPE PER TYPE 2' - 0" AUGERED CAST- IN-PLACE PILE BARS @ 12" OC EF TYP, MATCH T&B BAR SIZE A1 / S-602 Ldh PER TOP RST EW W/ STD HKS EA END BOT RST EW W/ STD HKS EA END
