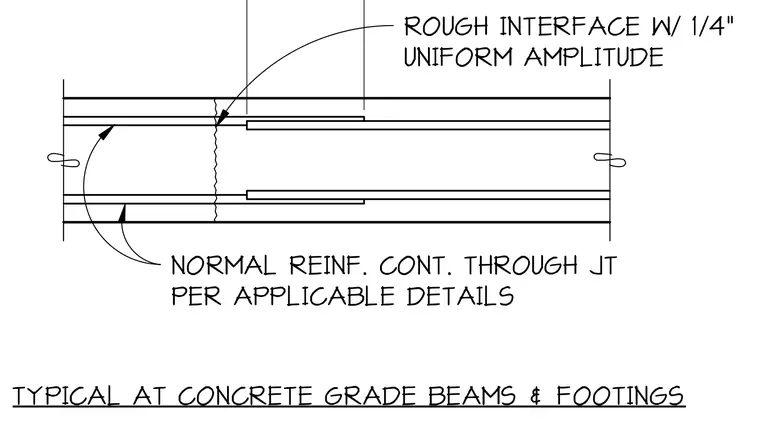

A concrete interface joint at grade beams and footings features a rough interface with one-quarter inch uniform amplitude for shear transfer. Normal reinforcement continues through the joint per applicable details.
ROUGH INTERFACE W/ 1/4" UNIFORM AMPLITUDE NORMAL REINF. CONT. THROUGH JT PER APPLICABLE DETAILS TYPICAL AT CONCRETE GRADE BEAMS & FOOTINGS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
