An exterior housekeeping pad is anchored to a structural concrete slab with number 5 epoxy-coated dowels installed with Hilti RE-500 adhesive at 16 inches each way. The pad is reinforced with number 4 rebar at 16 inches each way placed at slab mid-depth, with a thickness varying at 3 inches minimum over a continuous waterproof membrane applied at the exterior slab.

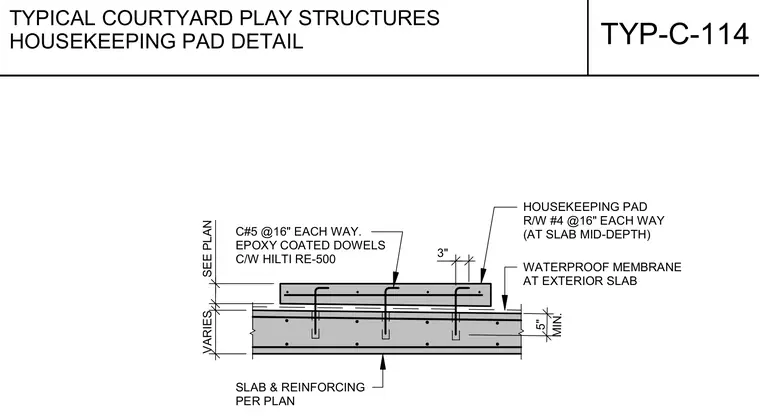

SLAB & REINFORCING PER PLAN C#5 @16" EACH WAY. EPOXY COATED DOWELS C/W HILTI RE-500 HOUSEKEEPING PAD R/W #4 @16" EACH WAY (AT SLAB MID-DEPTH) WATERPROOF MEMBRANE AT EXTERIOR SLAB VARIES 3" SEE PLAN MIN. 5" TYP-C-114 TYPICAL COURTYARD PLAY STRUCTURES HOUSEKEEPING PAD DETAIL
