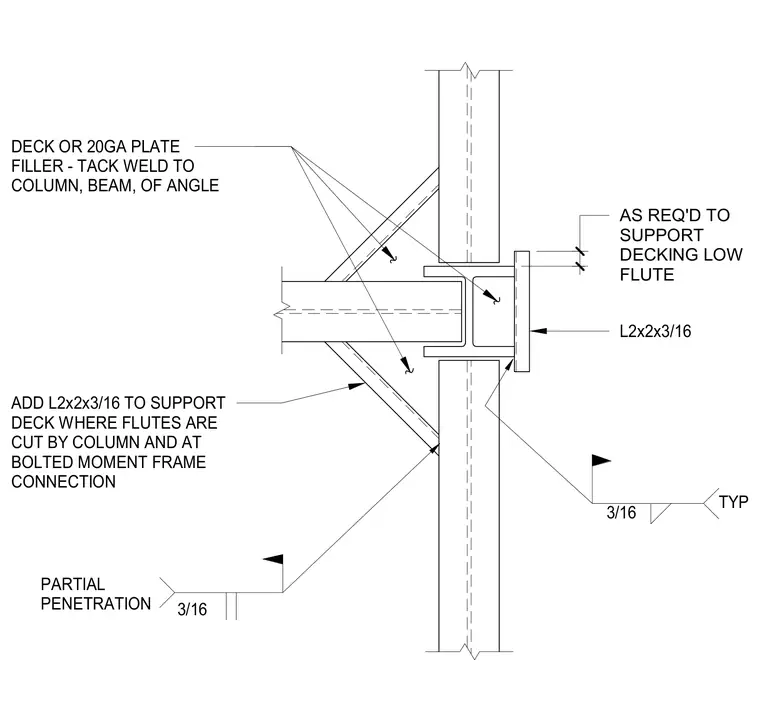

Metal decking or a twenty-gauge plate filler is tack welded to the column, beam, or angle to support the low flute where flutes are cut by the column and at the bolted moment frame connection. An L2x2x3/16 angle is added as required to support the decking. A partial penetration weld with a three-sixteenth-inch fillet is specified at the connection.
DECK OR 20GA PLATE FILLER - TACK WELD TO COLUMN, BEAM, OF ANGLE ADD L2x2x3/16 TO SUPPORT DECK WHERE FLUTES ARE CUT BY COLUMN AND AT BOLTED MOMENT FRAME CONNECTION PARTIAL PENETRATION 3/16 3/16 TYP L2x2x3/16 AS REQ'D TO SUPPORT DECKING LOW FLUTE
