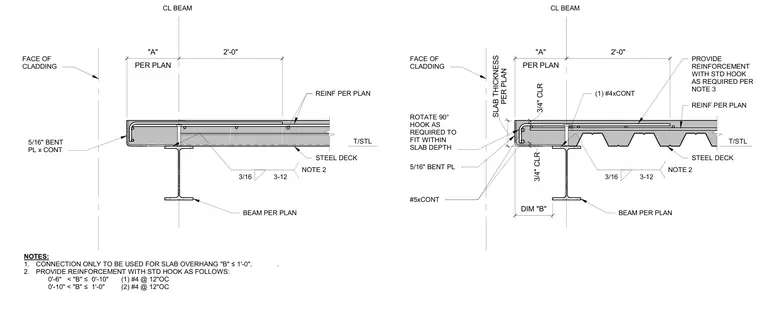

A concrete slab overhang is supported by a steel beam and bounded by a continuous five-sixteenths-inch bent plate at the cladding face. The assembly includes continuous reinforcing bars sized per plan with standard hooks, accompanied by additional number four reinforcing bars at twelve inches on center conditioned upon the overhang dimension being between six inches and one foot. Steel deck bearing is detailed with three-quarter-inch clearances and specified fillet welds. The top of steel is referenced to slab thickness requirements per plan.
T/STL T/STL PER PLAN "A" 2'-0" CL BEAM FACE OF CLADDING ROTATE 90° HOOK AS REQUIRED TO FIT WITHIN SLAB DEPTH 5/16" BENT PL #5xCONT REINF PER PLAN PROVIDE REINFORCEMENT WITH STD HOOK AS REQUIRED PER NOTE 3 (1) #4xCONT PER PLAN SLAB THICKNESS 3/16 3-12 NOTE 2 NOTES: 1. CONNECTION ONLY TO BE USED FOR SLAB OVERHANG "B" ≤1'-0". . 2. PROVIDE REINFORCEMENT WITH STD HOOK AS FOLLOWS: 0'-6" < "B" ≤ 0'-10" (1) #4 @ 12"OC 0'-10" < "B" ≤ 1'-0" (2) #4 @ 12"OC CL BEAM FACE OF CLADDING 5/16" BENT PL x CONT REINF PER PLAN 3/4" CLR 3/4" CLR DIM "B" BEAM PER PLAN STEEL DECK STEEL DECK BEAM PER PLAN PER PLAN "A" 2'-0" 3/16 3-12 NOTE 2
