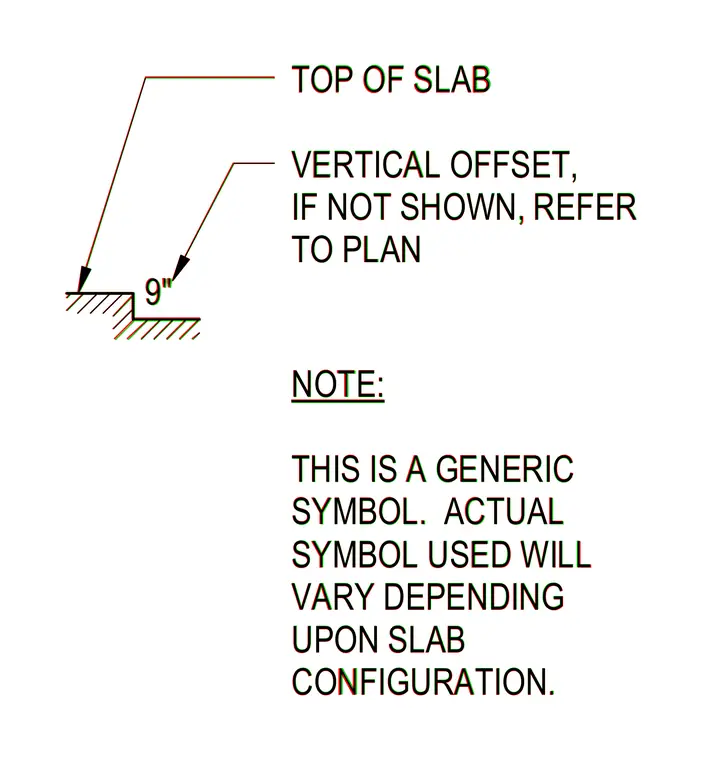

A vertical offset in the concrete slab indicates a change in elevation referenced from the top of slab. The dimension indicates a 9-inch vertical drop or rise, with actual configurations subject to the specific floor plan. This serves as a generic symbol whose application varies depending on the surrounding slab configuration.
NOTE: THIS IS A GENERIC SYMBOL. ACTUAL SYMBOL USED WILL VARY DEPENDING UPON SLAB CONFIGURATION. TOP OF SLAB VERTICAL OFFSET, IF NOT SHOWN, REFER TO PLAN 9" NOTE: THIS IS A GENERIC SYMBOL. ACTUAL SYMBOL USED WILL VARY DEPENDING UPON SLAB CONFIGURATION. TOP OF SLAB VERTICAL OFFSET, IF NOT SHOWN, REFER TO PLAN 9"
