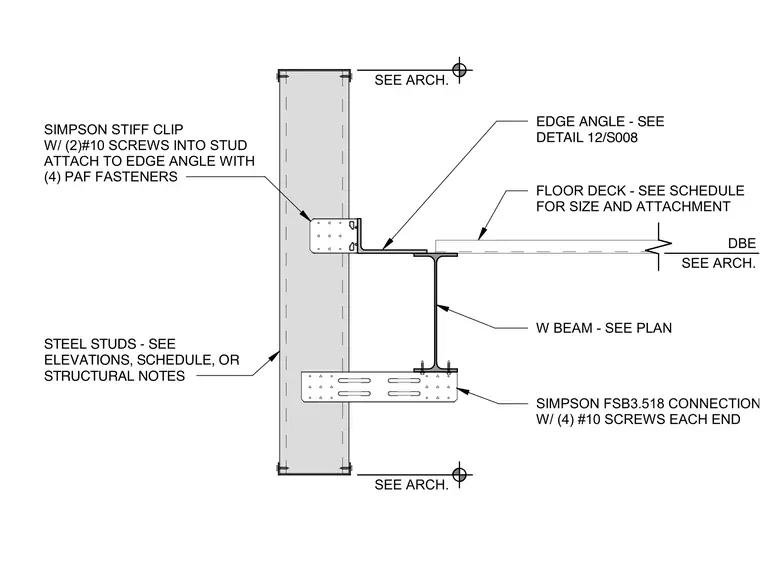

This assembly connects a wide-flange beam to a cold-formed steel stud wall using two distinct Simpson Strong-Tie components. The top of the beam is braced by an edge angle, which is secured to the steel stud with a Simpson Stiff Clip using two number ten screws into the stud and four powder-actuated fasteners into the edge angle. The bottom flange of the wide-flange beam is supported by a Simpson FSB3.518 connection, which is fastened to the stud with four number ten screws at each end. The floor deck is supported by the wide-flange beam and the edge angle, with specific sizes and attachment methods referenced in the project schedules.
