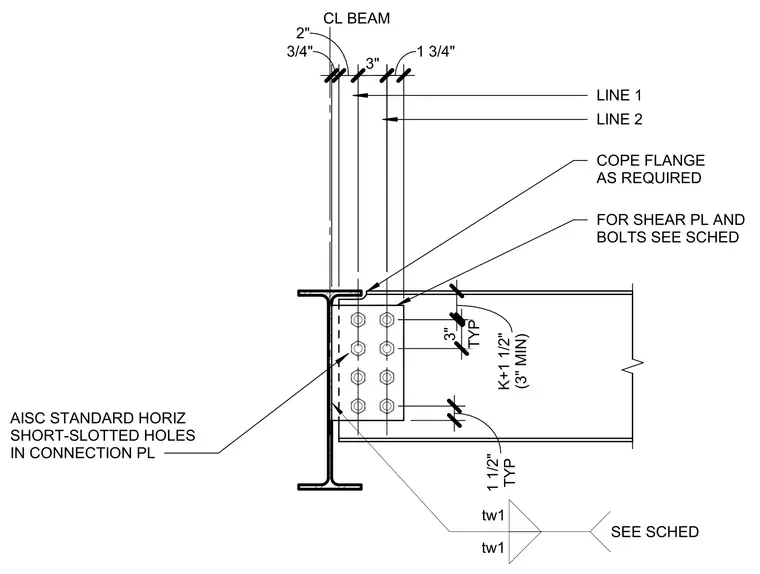

This structural steel connection details a supported beam framed into a supporting beam web using a bolted shear plate. The connection plate incorporates American Institute of Steel Construction standard horizontal short-slotted holes for slip-critical or expansion capabilities. The top flange of the supported beam is coped as required, maintaining a minimum clearance defined by dimension k plus one and one-half inches, or three inches minimum. Shear plate dimensions, bolt sizes, and configurations are referenced to the structural schedule. Fillet welds of size tw1 secure the connection elements.
CL BEAM TYP 1 1/2" TYP 3" (3" MIN) K+1 1/2" FOR SHEAR PL AND BOLTS SEE SCHED COPE FLANGE AS REQUIRED AISC STANDARD HORIZ SHORT-SLOTTED HOLES IN CONNECTION PL tw1 tw1 SEE SCHED 3/4" 2" 3" LINE 2 LINE 1 1 3/4"
