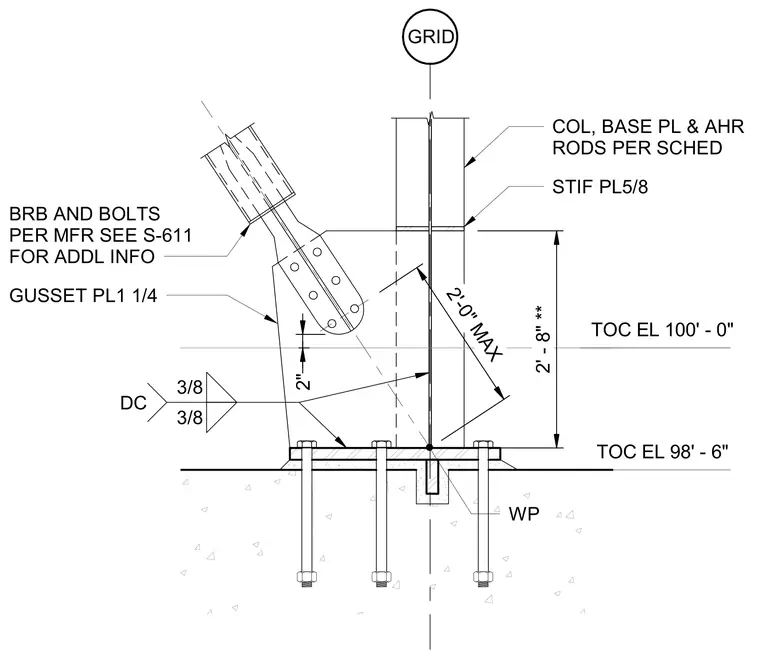

A buckling-restrained brace connects to a heavy gusset plate welded to a column base assembly with three-eighths-inch fillet welds. The column, base plate, and anchor rods are sized per schedule and anchored into concrete. A 5/8-inch stiffener plate provides lateral support along the column web. The gusset plate is 1-1/4 inches thick and connects to the brace with manufacturer-specified bolts.
COL, BASE PL & AHR RODS PER SCHED BRB AND BOLTS PER MFR SEE S-611 FOR ADDL INFO GUSSET PL1 1/4 WP TOC EL 100' - 0" TOC EL 98' - 6" GRID 2" STIF PL5/8 3/8 3/8 DC 2'-0" MAX 2' - 8" **
