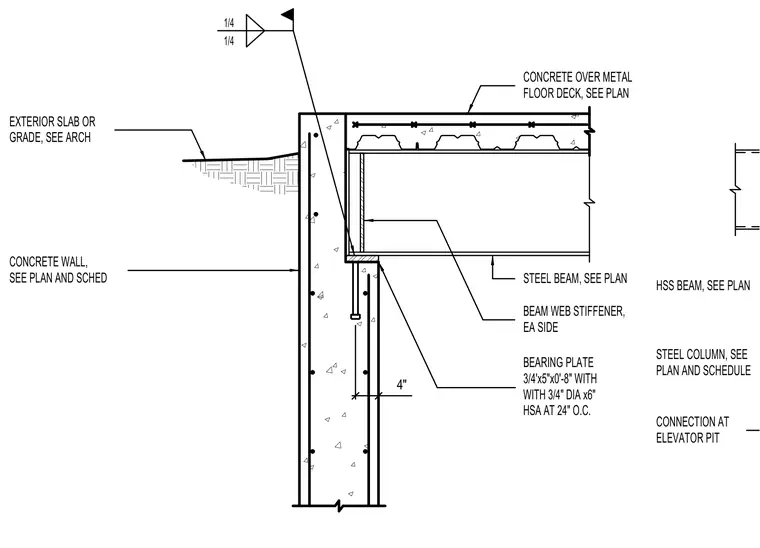

A steel beam bears onto a concrete wall via a 3/4" x 5" x 0'-8" bearing plate anchored with 3/4" diameter by 6" HSA anchors at 24 inches on center. Beam web stiffeners are welded to each side of the steel beam web above the bearing plate with fillet welds. A concrete slab over a metal floor deck is supported by the steel framing. The exterior grade or slab interfaces with the top of the concrete wall.
3/4'x5"x0'-8" WITH HSA AT 24" O.C. CONCRETE OVER METAL FLOOR DECK, SEE PLAN EXTERIOR SLAB OR GRADE, SEE ARCH STEEL BEAM, SEE PLAN BEAM WEB STIFFENER, EA SIDE BEARING PLATE 1/4 1/4 CONCRETE WALL, SEE PLAN AND SCHED WITH 3/4" DIA x6" 4" STEEL COLUMN, SEE PLAN AND SCHEDULE HSS BEAM, SEE PLAN CONNECTION AT ELEVATOR PIT
