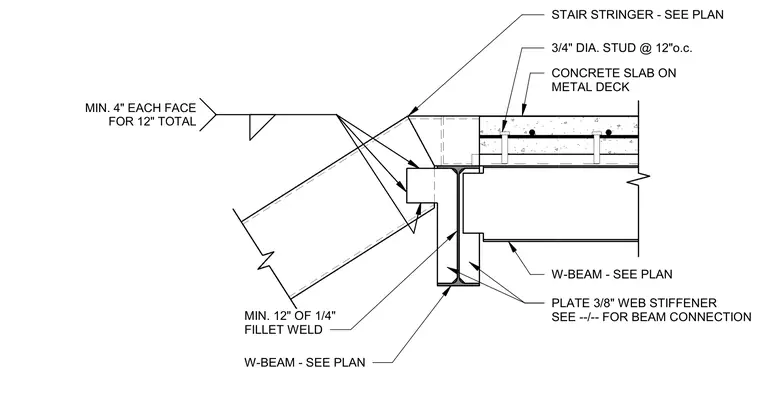

A stair stringer connects to a wide-flange support beam positioned at the edge of a concrete slab on metal deck. A three-eighths-inch thick web stiffener plate is welded to the wide-flange beam web. The stringer is secured with a quarter-inch fillet weld specifying a minimum of twelve inches total length, distributed as a minimum of four inches on each face. Shear studs of three-quarter-inch diameter spaced at twelve inches on center anchor the concrete slab to the supporting wide-flange beam.
MIN. 4" EACH FACE FOR 12" TOTAL MIN. 12" OF 1/4" FILLET WELD W-BEAM - SEE PLAN W-BEAM - SEE PLAN PLATE 3/8" WEB STIFFENER SEE --/-- FOR BEAM CONNECTION CONCRETE SLAB ON METAL DECK 3/4" DIA. STUD @ 12"o.c. STAIR STRINGER - SEE PLAN
