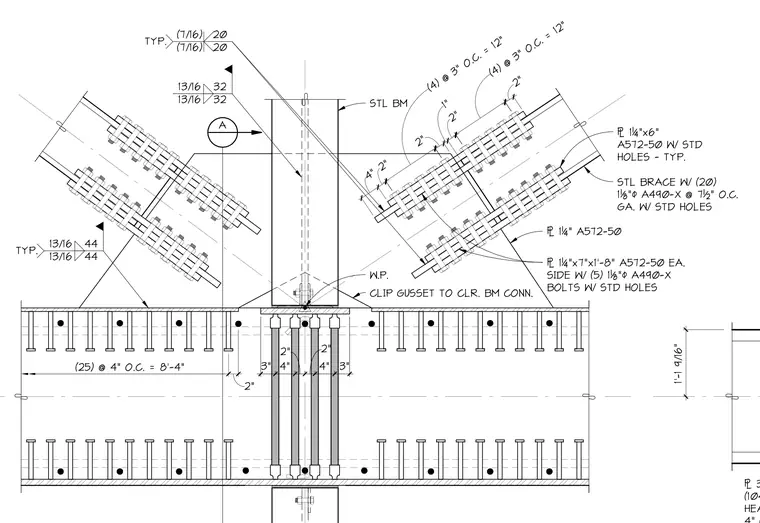

A structural steel brace connects to a steel beam using an ASTM A572-50 gusset plate and 1-1/8 inch diameter A490-X bolts with standard holes. The steel brace includes twenty 1-1/8 inch diameter A490-X bolts spaced at 7-1/2 inches on center. Additional 1-1/4 inch by 7 inch by 1 foot 8 inch ASTM A572-50 clip gusset plates are provided on each side, secured with five 1-1/8 inch diameter A490-X bolts with standard holes. The assembly features fillet welds and headed studs welded to the steel beam flanges.
3" 4" 2" 2" 4" 3" 4" 2" (4) @ 3" O.C. = 12" 2" 1" 2" (4) @ 3" O.C. = 12" 2" (25) @ 4" O.C. = 8'-4" A 1'-1 9/16" 3/4" A572 (104) 7/8""x8" HEADED STUDS @ STL BRACE W/ (20) 1,"" A490-X @ 7½" O.C. GA. W/ STD HOLES STL BM W.P. CLIP GUSSET TO CLR. BM CONN. 1¼"x7"x1' -8" A572-50 EA. SIDE W/ (5) 1,"" A490-X BOLTS W/ STD HOLES 1¼"x6" A572-50 W/ STD HOLES - TYP. 1¼" A572 -50 (7/16) 20 (7/16) 20 TYP. 13/16 32 13/16 32 13/16 44 13/16 44 TYP. 2"
