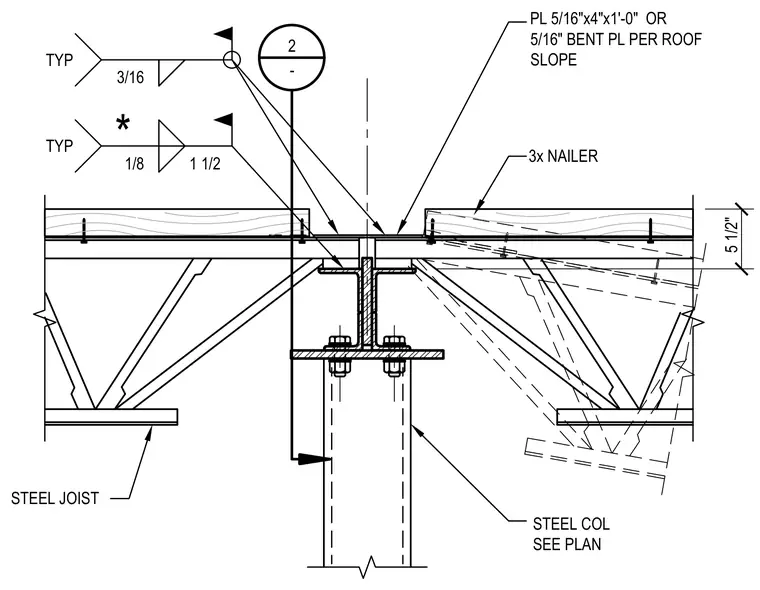

Steel joists bear on top of a steel column sized per plan, connected via a five-sixteenth-inch by four-inch by one-foot-zero-inch plate or five-sixteenth-inch bent plate adjusted for the roof slope. A three-times lumber nailer fastens above the assembly with a three-sixteenth-inch typical fillet weld and an eighth-inch weld with one-and-a-half-inch spacing. The connection utilizes bolted and welded detailing at the column capital and top chord bearing locations.
PL 5/16"x4"x1'-0" OR 5/16" BENT PL PER ROOF SLOPE STEEL COL SEE PLAN * 5 1/2" 2 - 3/16 TYP 1/8 1 1/2 TYP STEEL JOIST 3x NAILER
