Structural · S-GVYB9

Typical Braced Frame Column & Anchorage

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Arches Bracing Anchors / Embeds Reinforcing

Connections

Braced Frame Connection Base Plate / Anchorage Bolted Connection Rebar Splice / Development

About this detail

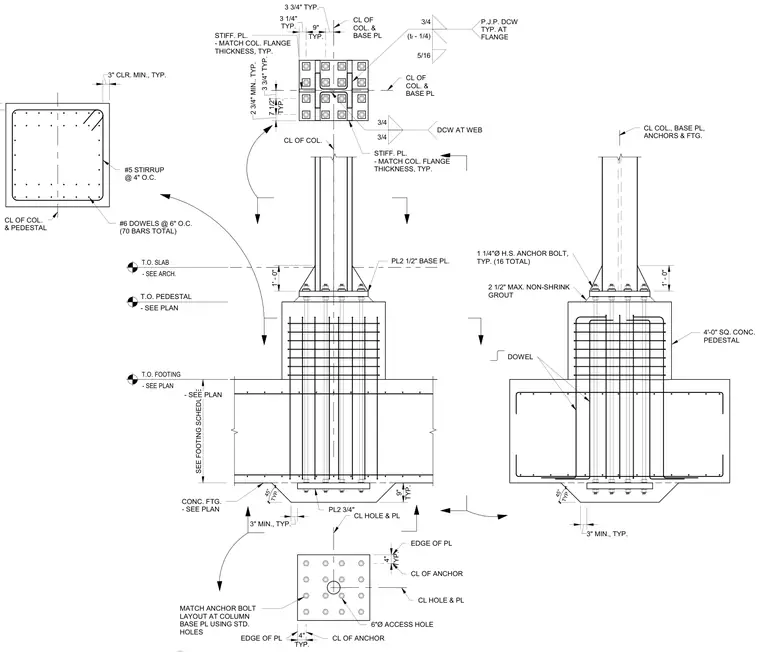

A steel column connects to a two-inch-and-one-half base plate secured by sixteen one-and-one-quarter-inch diameter high-strength anchor bolts. Stiffener plates matching the column flange thickness are welded to the column with partial-joint-penetration groove welds at the flanges and double-fillet welds at the web. The base sits over a two-and-one-half-inch maximum layer of non-shrink grout atop a four-foot-square concrete pedestal reinforced with number five stirrups at four inches on center and seventy number six dowels at six inches on center. A concrete footing supports the pedestal, with bottom reinforcement detailed per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
