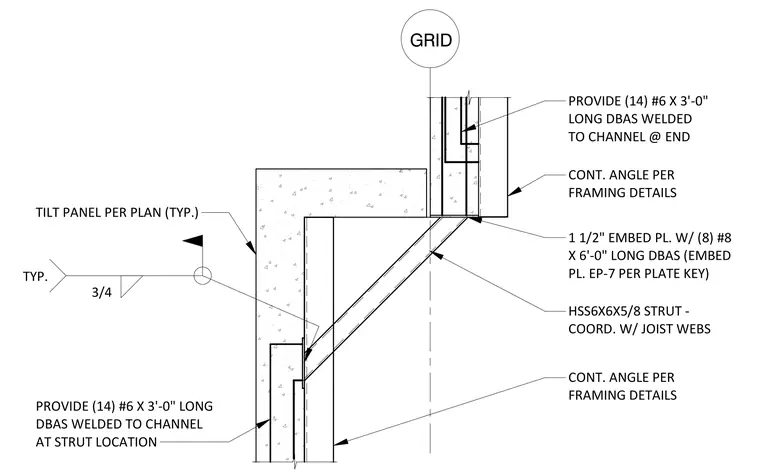

This assembly features a 6-inch by 6-inch by 5/8-inch hollow structural section strut connecting to a tilt-up concrete panel. The strut is welded to an embedded steel plate, identified as EP-7, which is anchored into the concrete panel with eight number 8 deformed bar anchors, each 6 feet long. The panel includes continuous angles as specified in the framing details. Additional reinforcement consists of fourteen number 6 deformed bar anchors, each 3 feet long, welded to the channel at the strut location and at the panel ends. A 3/4-inch fillet weld is specified for the connection between the strut and the embedded plate assembly.
Text on the drawing
1 CONT. ANGLE PER FRAMING DETAILS CONT. ANGLE PER FRAMING DETAILS HSS6X6X5/8 STRUT - COORD. W/ JOIST WEBS 1 1/2" EMBED PL. W/ (8) #8 X 6'-0" LONG DBAS (EMBED PL. EP-7 PER PLATE KEY) PROVIDE (14) #6 X 3'-0" LONG DBAS WELDED TO CHANNEL @ END TILT PANEL PER PLAN (TYP.) PROVIDE (14) #6 X 3'-0" LONG DBAS WELDED TO CHANNEL AT STRUT LOCATION 3/4 TYP. GRID
