Structural · S-GVK43

Continuous Steel Beam Penetration through Concrete Tilt-Up Panel

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Beams Roofs Decks Bracing Connections / Plates

Connections

Braced Frame Connection Welded Connection Deck Attachment

About this detail

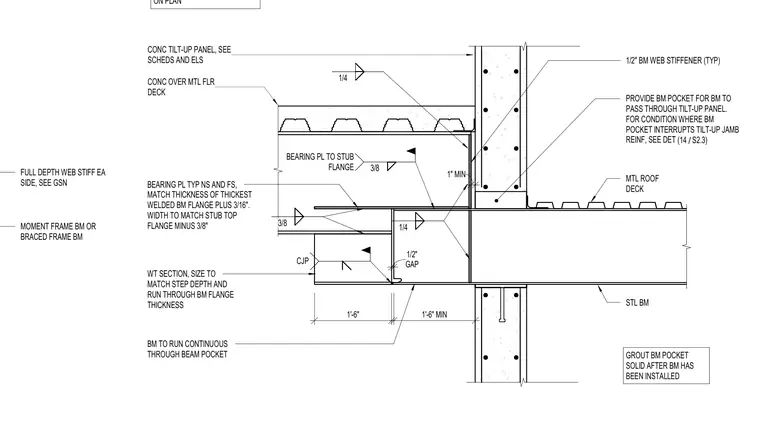

A continuous steel beam passes through a beam pocket formed in a concrete tilt-up panel, flanked by concrete over metal floor deck and metal roof deck. A WT section sized to match the step depth runs through the beam flange thickness with a complete joint penetration weld. Bearing plates are welded to the stub flange and matched to the thickness of the thickest welded beam flange plus three-sixteenths of an inch. One-half-inch beam web stiffeners are provided on each side, with the beam pocket grouted solid after installation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
