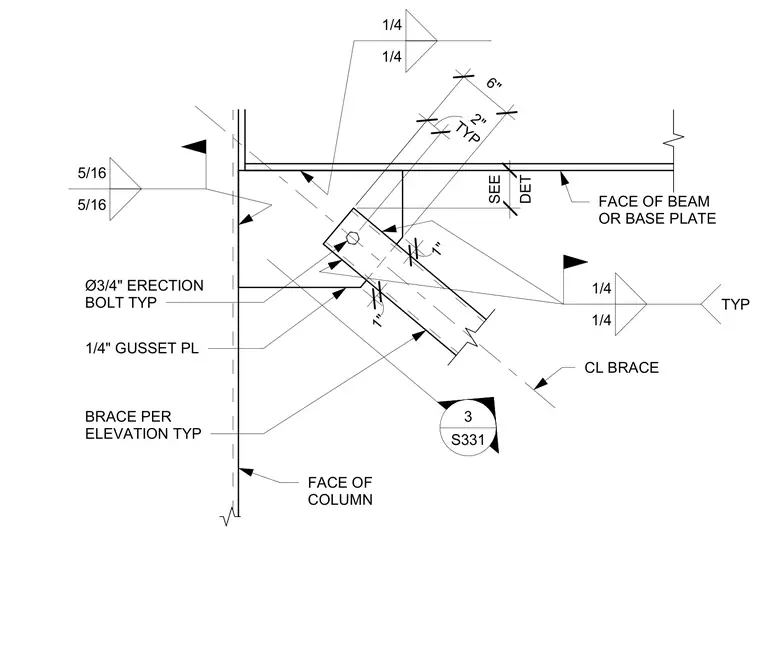

A structural steel brace connects to a column and beam intersection using a quarter-inch gusset plate welded with five-sixteenth-inch and quarter-inch fillets. The brace aligns with the center line per elevation and incorporates three-quarter-inch erection bolts for field assembly. Clearances and dimensions specify edge distances and spacing typical for structural bracing configurations.
TYP 2" 1/4" GUSSET PL 1/4 1/4 FACE OF BEAM OR BASE PLATE FACE OF COLUMN 3 S331 CL BRACE BRACE PER ELEVATION TYP 1/4 1/4 TYP Ø3/4" ERECTION BOLT TYP DET SEE 5/16 5/16 1" 1" 6"
