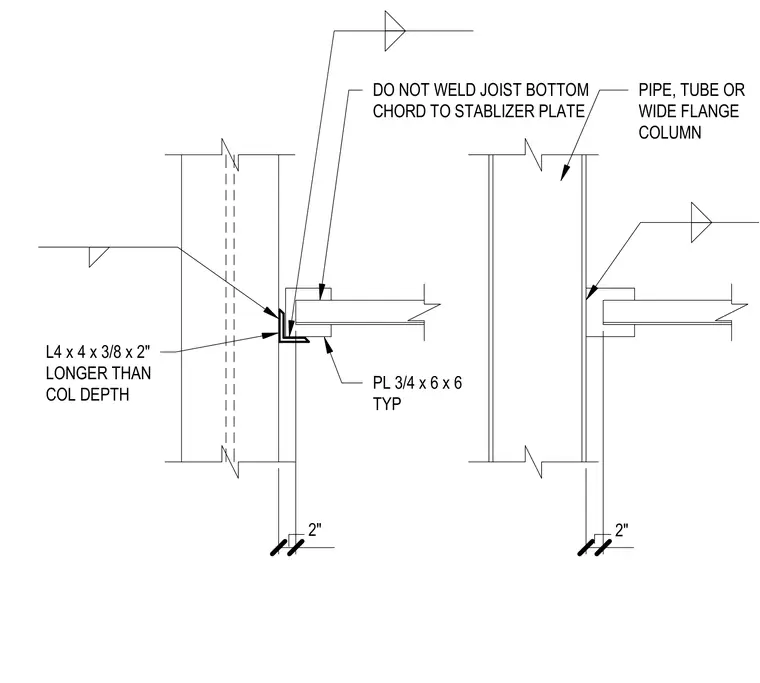

An open-web steel joist bottom chord connects to a pipe, tube, or wide flange column using a three-quarter by six by six inch plate typically welded to the column. An L4x4x3/8 angle, two inches longer than the column depth, is positioned against the column web or flange. The joist bottom chord is left unwelded to the stabilizer plate to allow for movement.
2" 2" L4 x 4 x 3/8 x 2" LONGER THAN COL DEPTH PL 3/4 x 6 x 6 TYP PIPE, TUBE OR WIDE FLANGE COLUMN DO NOT WELD JOIST BOTTOM CHORD TO STABLIZER PLATE
